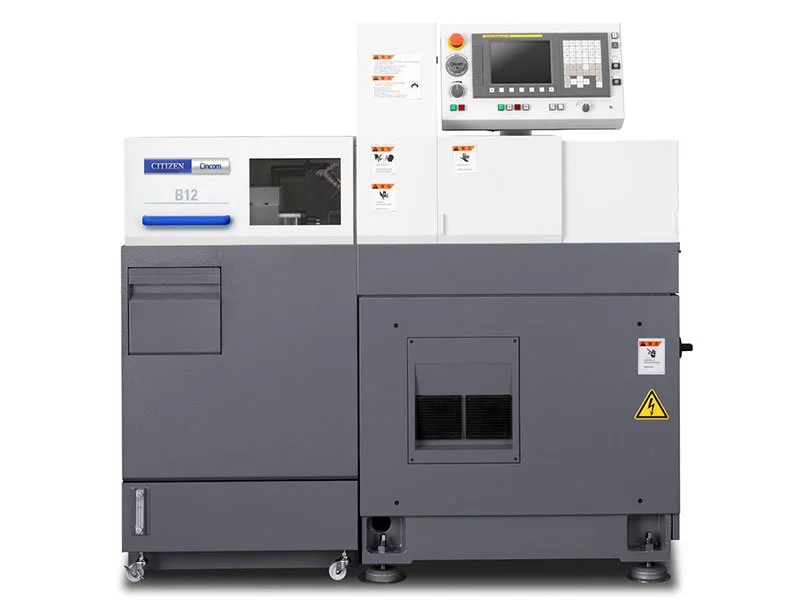

CINCOM B12EVI

The Standard in CNC Automatic Lathes

  • In addition to the 5 turning tools, the B12VI also comes with 3 live cross tools and 4 front/back ID tools. This is the standard machine for the US market.

Reduced Machining, NC Operation and Tool Replacement Time

  • Multi-axis control system for extremely fast data processing

  • All operations directly controlled by the NC using a completely electronic full servo system

  • Machining with higher precision is assured even in lengthy operations without being affected by the thermal displacement of a ball screw

  • A built-in servo motor with an integrated ball screw realizes high speed, fast response operation of the feed system

  • Tool layout not constrained by machine structure reduces setup and tool replacement times

Additional Details

    • Less downtime – eliminates belts, hydraulics, pressure switches, pneumatics, solenoids and other high maintenance components

    • Shorter cycle times than CAMs

      • Faster rapid traverses and spindle speeds

      • Quicker acceleration and deceleration times

      • Shorter chip-to-chip times and chuck open/close times

    • 40% less floor space

    • Synchronous rotation with main spindle

    • Front and back work performed simultaneously

    • S4-digits direct command transmission to 7,000 rpm

    • 0.5 kw motor for excellent acceleration and deceleration

    • Back spindle has same electrical chuck as front spindle

    • May be opened and closed as needed, eliminating limitations of a conventional CAM drive

    • Quick, easy, safe way to prove out new programs

    • Reviews operation in forward and reverse for accurate program editing

    • Increased reliability due to reduced number of parts

    • Minimum maintenance and attendance

    • Drive spindle built-in and fully enclosed

    • Reduced vibration and noise

    • Sealed unit enables use of water soluble cutting oil

Typical Parts

  • Contouring

  • Threading

  • End Work

    • Drilling

    • Tapping

    • Reaming

    • Boring

Machine Specifications

Max. machining diameter (D)

Max. machining length (L)(per chucking)

Main spindle motor

Main spindle speed

Back spindle speed

Number of Tools: Cutting

Number of Tools: Rotary

Number of Tools: Front Drilling

Number of Tools: Back Drilling

.47″

5.31″

1.5/2.2 KW

100-12,000 rpm

100-7,000 rpm

5

3

4

4
