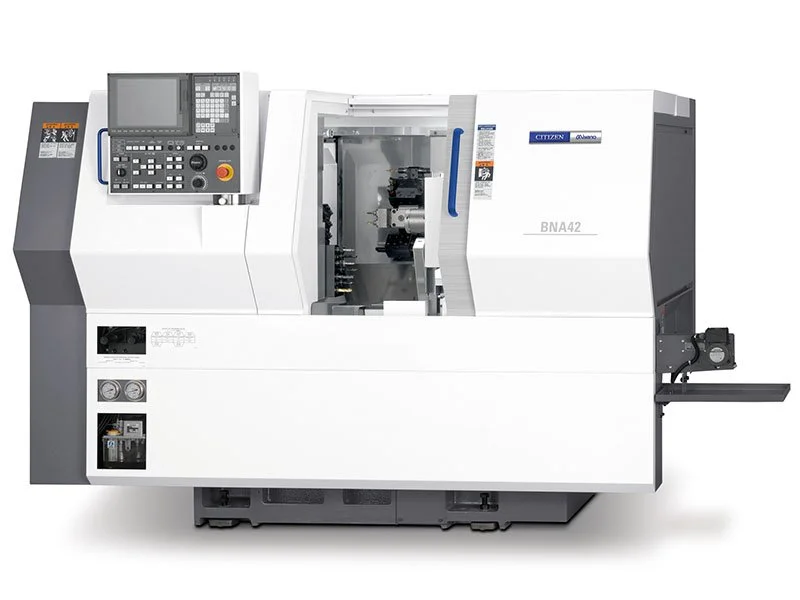

MIYANO BNA - 42GTY

Designed for accuracy and long tool life

  • The BNA-42GTY is configured with two spindles, one turret, two Y axes, gang tools and X3 axis to back spindle, the BNA-42GTY can mount up to 45 tools.

Featuring:

  • 3 tool simultaneous cutting

  • Renowned Miyano accuracy

  • High productivity with fast cycle times

  • Versatile tool layout

  • Superimposition control allows simultaneous cutting with two tools at the main spindle (SP1), or with three tools when the sub spindle (SP2) is included, shortening cycle times.

  • The turret has 8 stations, but the half-indexing mechanism makes it possible to mount tools at up to 16 positions. The use of optional multiple tool holders can further increase the number of tool positions.

Additional Details

Standard NC Functions

  • Background editing

  • User macro

  • Geometry & wear offset

  • Number of tool offset: 80 pairs

  • Part program storage capacity 320m

  • RS232C Interface

  • Run hour/parts number counting

  • Total & preset counter

  • C-axis for Main (left) and Back (right) spindles

  • Milling interpolation

  • Helical interpolations

  • Canned cycle for drilling

  • Chamfering / Corner R

  • Constant surface speed control

  • Multiple Repetitive Cycle

  • Rigid tapping for SP1/SP2 and revolving tool

  • Skip function

  • Tool nose R compensation

  • Y-axis offset

  • Polygon Turning

Optional NC Functions

  • Network I/O function

Standard Accessories

  • Main spindle chucking device

  • Back spindle chucking device

  • Filler tube assembly

  • Spindle air blow (SP1)

  • Inner high pressure coolant & air blow (SP2)

  • Spindle disk brake (SP1 & SP2)

  • Coolant system (with level detector)

  • 3-color signal tower

  • Lubricating oil supply unit (with level detector)

  • Machine relocation detector

  • Door lock

  • Workpiece conveyor

  • Cut-off confirmation

  • Chip conveyor

  • Recommended tool package

  • High pressure coolant device

Optional Accessories

  • SP2 Chucking system for B42 (compatible with DIN173E) (~42mm)

Machine Specifications

Machining capacity: Max. machining diameter of bar work (SP1)

Machining capacity: Max. machining diameter of bar work (SP2)

Machining capacity: Max. machining length

Spindle: Number of spindle

Spindle: Spindle speed range (SP1)

Spindle: Spindle speed range (SP2)

Spindle: Spindle minimum index angle (SP1)

Spindle: Spindle minimum index angle (SP2)

Turret: Number of tools

Turret: Gang tool post (Front Turning)

Turret: Gang tool post (Front revolving)

Turret: Gang tool post (Back ID tools)

Turret

Turret: Revolving tool

Turret: Shank size of turning tool

Turret: Diameter of sleeve holder

Turret: Revolving tool chuck

Turret: Tool spindle speed range

Slide stroke: Axis stroke/Rapid speed (Z1 axis)

Slide stroke: Axis stroke/Rapid speed (X1 axis)

Slide stroke: Axis stroke/Rapid speed (Y1 axis)

Slide stroke: Axis stroke/Rapid speed (Z2 axis)

Slide stroke: Axis stroke/Rapid speed (X2 axis)

Slide stroke: Axis stroke/Rapid speed (Y2 axis)

Slide stroke: Axis stroke/Rapid speed (Z3 axis)

Slide stroke: Axis stroke/Rapid speed (X3 axis)

Motors: Spindle drive (SP1)

Motors: Spindle drive (SP2)

Motors: Revolving tool drive (Turret)

Motors: Revolving tool drive (Gang tool)

Power supply: Electrical capacity

Power supply: Air supply

Coolant tank capacity

Machine dimensions: Machine height

Machine dimensions: Floor space

Machine dimensions: Machine weight

42mm

42mm

110mm

2

6,000 rpm

5,000 rpm

0.001°

0.001°

21 ~ 45

3

3

5

8 Sta.

8 Sta. available

3/4″

1”

ER16

6,000 rpm

110mm 30m/min

95mm 24m/min

260mm 30m/min

235mm 20m/min

140mm 20m/min

70mm 12m/min

360mm 20m/min

190mm 12m/min

11/7.5kw (15min/cont.)

5.5/3.7kw (15min/cont.)

1.0kW

1.5kW

34KVA

0.5MPa

165L

1,680mm

2,350 W × 1,475mm D

3,740kg
