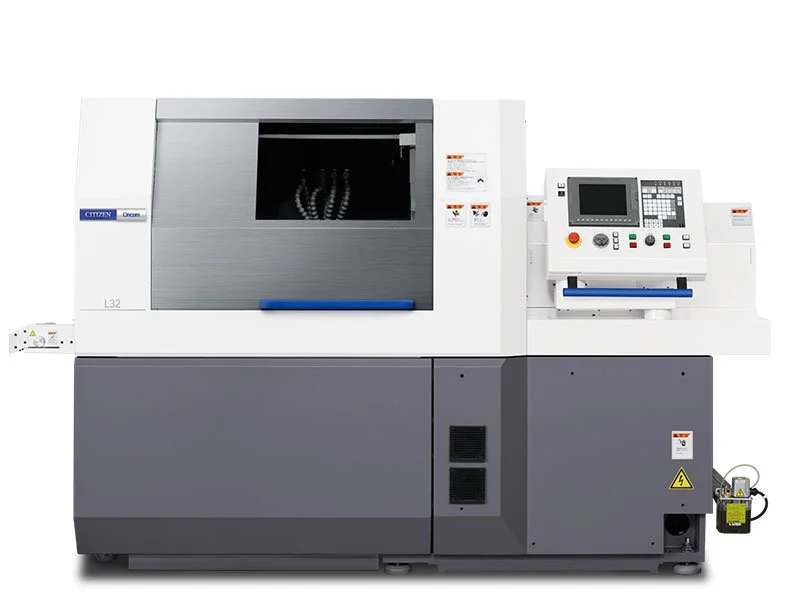

CINCOM L32 SERIES

L32 VIII / L32 X / L32 XII

  • With a legacy as one of the best-selling Cincom machines, this next generation L32 is launched with 3 models in a modular design.

  • Ranging from a 5-axis machine with excellent cost performance to a high-end machine equipped with a B-axis and back tool post Y-axis, you can select the machine according to the functions you require. A wide range of modular tooling ensures that the L32 is both versatile and flexible to meet your production needs well into the future.

  • The L32 series features the ALL axis Simultaneous Cincom System M70 Control (Mitsubishi Meldas 70LPC) and boasts a user-friendly editing function which utilizes multi-line, multi-axes programming along with superimposed and synchronized control. In addition, one bar loader axis (A7) can make easy work of your toughest applications.

Additional Details

    • All three models handle both long and short workpieces with maximum efficiency by easily switching between guide bushing and non-guide bushing mode.

    • A Seven Cutting Axes model (X1, Y1, Z1, X2, Z2, C1, C2) with excellent cost performance.

    • With Eight Cutting Axes (X1, Y1, Z1, X2, Y2, Z2, C1, C2) the type X offers a wide range of modular tooling making it both versatile and flexible enough to meet your production demands.

    • Stable, powerful and highly productive this high-end model includes nine Cutting Axes (X1, Y1, Z1, X2, Y2, Z2, C1, C2, B). Up to 40 tools can be mounted at any one time supported by a very high level of control features.

Standard NC Functions

  • CINCOM SYSTEM M70LPC-VU (Mitsubishi)

  • 8.4 inch color LCD

  • USB slot

  • Program storage capacity: 80 m (approx. 32 KB)

  • Tool offset pairs : 80

  • Product counter indication (up to 8 digits)

  • Operating time display function

  • Machine operation information display

  • Multiple repetitive cycle for turning

  • B-axis control function (type XII)

  • Back spindle chasing function

  • Interference check function

  • Synch tapping phasing function

  • Spindle speed change detector

  • Constant surface speed control function

  • Automatic power-off function

  • On-machine program check function

  • Chamfering, corner R

  • Nose radius compensation

  • Eco indication

  • Variable lead thread cutting

  • Arc threading function

  • Geometric functions Spindle synchronized function

  • Spindle C-axis function

  • Back spindle C-axis function

  • Milling interpolation

  • Canned cycle drilling

  • Rigid tapping function

  • High speed Rigid tapping function

  • Differential speed rotary tool function

  • Tool life management I

  • Tool life management II

  • External memory program driving

  • User macros

  • Helical interpolation function

  • Slant helical interpolation function

  • Hob function

  • Polygon function

  • Inch command

  • Sub inch command

  • Network I/O function

Optional NC Functions

  • Optional block skip (9 sets)

  • Back machining program skip function

  • Program storage capacity 600 m (approx. 240 KB)

Standard Accessories

  • Main spindle chucking unit

  • Back spindle chucking unit

  • Rotary guide bushing unit

  • Gang rotary tool driving unit

  • Coolant unit (with level detector)

  • Lubricating oil supply unit (with level detector)

  • Machine relocation detector

  • Door lock

  • Cut-off tool breakage detector

  • Workpiece separator

  • Lighting

  • Main spindle coolant unit

  • Front rotary tool unit (Type X, XII)

  • Back tool post rotary unit

Optional Accessories

  • Knock-out jig for through-hole workpiece

  • Chip conveyor

  • Back rotary tool unit (type VIII)

  • Coolant flow rate detector

  • Signal lamp

  • 3-color signal tower

  • Front rotary tool unit

Machine Specifications

Type VIII:

Model number

Max. machining diameter (D)

Max. machining length (L)

Spindle through-hole diameter

Main spindle speed

Max. chuck diameter of back spindle

Max. protrusion length of back spindle workpiece

Max. protrusion length

Back spindle speed

Gang rotary tool spindle speed

Front rotary tool (OP): Spindle speed

Back tool post rotary tool (OP VIII): Spindle speed

Number of tools to be mounted (max.)

Gang turning tool

Gang rotary tool

Front drilling tool

Back drilling tool

Tool size: Gang turning tool

Tool size: Sleeve

Chuck and bushing: Main spindle collet chuck

Chuck and bushing: Back spindle collet chuck

Chuck and bushing: Rotary tool collet chuck

Chuck and bushing: Chuck for drill sleeves

Chuck and bushing: Guide bushing

Rapid feed rate: All axes (except Y2)

Rapid feed rate: Y2 axis

Motors: Spindle drive

Motors: Gang tool post rotary tool drive

Motors: Back spindle drive

Motors: Back tool post rotary tool drive

Motors: Front rotary tool drive

Motors: Coolant oil

Motors: Lubricating oil

Center height

Rated power consumption

Full-load current

Main breaker capacity

Air pressure & air flow rate for pneumatic devices

Weight

L32-1M8

∅ 32 mm (∅ 38 option)

GB:320 mm/1chucking NGB: 2.5D

∅ 39 mm

Max.8,000 min–1

∅ 32 mm

30 mm

80 mm

Max.8,000 min–1

Max. 6,000 min–1 (Rating 4,500 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

19~30

6

4~6

4~9

5~11

5/8″

1″

TF37SP (TF43: ∅ 38 spec)

TF37SP (TF43: ∅ 38 spec)

ER11, ER16

ER11, ER16

TD32 (STM38: ∅ 38 spec)

32 m/min

—

3.7/7.5 kW

1.0 kW

2.2/3.7 kW

1.0 kW

1.0 kW

0.4 kW

0.003 kW

1,050 mm

13.2 kVA

32 A

60 A

0.5 MPa, 64.2 NL

6,283 lb

Type X:

L32-1M10

∅ 32 mm (∅ 38 option)

GB:320 mm/1chucking NGB: 2.5D

∅ 39 mm

Max.8,000 min–1

∅ 32 mm

30 mm

65 mm

Max.8,000 min–1

Max. 6,000 min–1 (Rating 4,500 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

24~44

6

5~13

4~16

9~20

5/8″

1″

TF37SP (TF43: ∅ 38 spec)

TF37SP (TF43: ∅ 38 spec)

ER11, ER16

ER11, ER16

TD32 (STM38: ∅ 38 spec)

32 m/min

24 m/min

3.7/7.5 kW

1.0 kW

2.2/3.7 kW

1.0 kW

1.0 kW

0.4 kW

0.003 kW

1,050 mm

13.2 kVA

32 A

60 A

0.5 MPa, 64.2 NL

6,393 lb

Model number

Max. machining diameter (D)

Max. machining length (L)

Spindle through-hole diameter

Main spindle speed

Max. chuck diameter of back spindle

Max. protrusion length of back spindle workpiece

Max. protrusion length

Back spindle speed

Gang rotary tool spindle speed

Front rotary tool (OP): Spindle speed

Back tool post rotary tool (OP VIII): Spindle speed

Number of tools to be mounted (max.)

Gang turning tool

Gang rotary tool

Front drilling tool

Back drilling tool

Tool size: Gang turning tool

Tool size: Sleeve

Chuck and bushing: Main spindle collet chuck

Chuck and bushing: Back spindle collet chuck

Chuck and bushing: Rotary tool collet chuck

Chuck and bushing: Chuck for drill sleeves

Chuck and bushing: Guide bushing

Rapid feed rate: All axes (except Y2)

Rapid feed rate: Y2 axis

Motors: Spindle drive

Motors: Gang tool post rotary tool drive

Motors: Back spindle drive

Motors: Back tool post rotary tool drive

Motors: Front rotary tool drive

Motors: Coolant oil

Motors: Lubricating oil

Center height

Rated power consumption

Full-load current

Main breaker capacity

Air pressure & air flow rate for pneumatic devices

Weight

Type XII:

L32-1M12

∅ 32 mm (∅ 38 option)

GB:320 mm/1chucking NGB: 2.5D

∅ 39 mm

Max.8,000 min–1

∅ 32 mm

30 mm

65 mm

Max.8,000 min–1

Max. 6,000 min–1 (Rating 4,500 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

Max. 6,000 min–1 (Rating 3,000 min–1)

30~40

6

7~11

4~9

13~19

5/8″

1″

TF37SP (TF43: ∅ 38 spec)

TF37SP (TF43: ∅ 38 spec)

ER11, ER16

ER11, ER16

TD32 (STM38: ∅ 38 spec)

32 m/min

24 m/min

3.7/7.5 kW

1.0 kW

2.2/3.7 kW

1.0 kW

1.0 kW

0.4 kW

0.003 kW

1,050 mm

13.2 kVA

32 A

60 A

0.5 MPa, 64.2 NL

6,393 lb

Model number

Max. machining diameter (D)

Max. machining length (L)

Spindle through-hole diameter

Main spindle speed

Max. chuck diameter of back spindle

Max. protrusion length of back spindle workpiece

Max. protrusion length

Back spindle speed

Gang rotary tool spindle speed

Front rotary tool (OP): Spindle speed

Back tool post rotary tool (OP VIII): Spindle speed

Number of tools to be mounted (max.)

Gang turning tool

Gang rotary tool

Front drilling tool

Back drilling tool

Tool size: Gang turning tool

Tool size: Sleeve

Chuck and bushing: Main spindle collet chuck

Chuck and bushing: Back spindle collet chuck

Chuck and bushing: Rotary tool collet chuck

Chuck and bushing: Chuck for drill sleeves

Chuck and bushing: Guide bushing

Rapid feed rate: All axes (except Y2)

Rapid feed rate: Y2 axis

Motors: Spindle drive

Motors: Gang tool post rotary tool drive

Motors: Back spindle drive

Motors: Back tool post rotary tool drive

Motors: Front rotary tool drive

Motors: Coolant oil

Motors: Lubricating oil

Center height

Rated power consumption

Full-load current

Main breaker capacity

Air pressure & air flow rate for pneumatic devices

Weight

LFV Technology

We provide next-generation machining tools to greatly reduce or eliminate a host of chip-related problems during cutting, taking your productivity to the next level.

LFV technology stands for low frequency vibration cutting. The servo axes are vibrated in the axial direction using a unique control technology where by cutting is performed while synchronizing
this vibration with the rotation of the spindle. This cutting method introduces regular "air-cutting" into the cycle, breaking up of chips into very small pieces making it the optimum processing method
for difficult-to-machine materials.
