PARTS HANDLING SYSTEMS

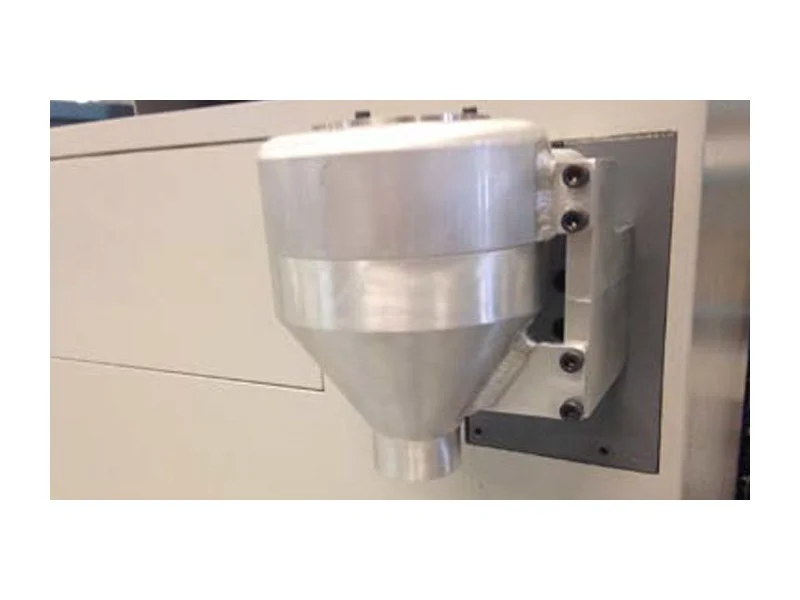

Small Part Vacuum Ejection System

  • The workpiece is ejected from the sub spindle into the vacuum extractor and travels outside the machine where it can be deposited into a multiple station rotary parts carousel. Parts can be segregated in the carousel for first article inspection and other post process activities.

Rotary Parts Carousel

  • Delicate parts can be separated/collected into individual locations. This enables longer periods of unattended operation.

  • Features:

    • Quick change part collection wheels

    • Chute to direct parts into carousel locations

    • Includes 14 place wheel with removable bins

    • Includes 30 place wheel

    • Mounting hardware kit

    • Easy installation and electrical interface to the Citizen machine

    • User-friendly programmable parts counter
