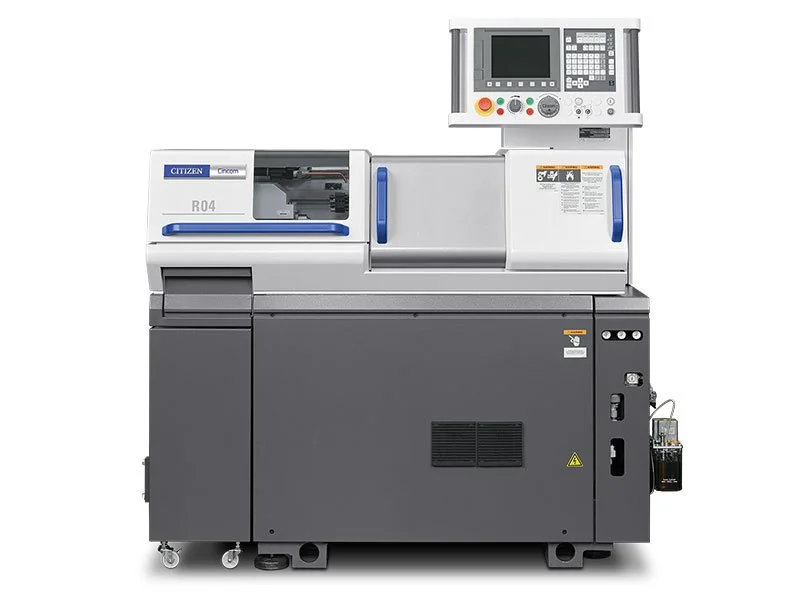

CINCOM R SERIES
Switch between guide bushing and non-guide bushing type (standard) and machine bar stock up to ∅ 25 mm (option)
Additional Details
-
The new R07 CINCOM is compact and has a maximum machining diameter of ∅ 7 mm. It specializes in machining small-diameter parts, thus offering a wider range of high-precision work pieces for specialized parts.
-
The new R07 features a compact rotary guide bushing unit developed exclusively for high-speed, high-precision machining. With this new rotary guide bushing the R07 can perform metal cutting at speeds of up to 12,000 rpm. Without the rotary guide bushing the cutting speeds go up to 16,000 rpm. The sub-spindle delivers 10,000 rpm.
-
The R07 CINCOM uses linear motors to drive the slide and tool posts. This system achieves fast part processes with quick response and quiet operation, as well as eliminating thermal distortion. A scale feedback control system is also used with all axes, which offers the perfect machine configuration for machining small, high-precision parts.
-
Even while the high-speed built-in spindle motor is running at a high speed, the chuck can be opened or closed without first decreasing the speed. This feature reduces non-cutting idle time which results from acceleration and deceleration of the spindle. Use of two independent tool posts on the machine increases operation efficiency, eliminating idle time due to a tool exchange.
-
Complementing the R07 is the optional ALPS Automatic Bar Loader. This special bar loader is specifically designed to grasp and feed small wire-like bars into the machine.
-
The R07 CINCOM offers an optional vacuum type part removal system and carousel work piece separator that can greatly improve productivity.
-
Rotary tools are now part the gang tool post. This allows small-diameter parts requiring complex machining such as polygon turning and end face drilling be machined easily.
-
The R07 CINCOM with its use of a built-in spindle and linear motor, reduces the size of the machine foot print saving valuable floor space by 40% compared to that of the B12. This small, compact size considerably increases the manufacturing production area of the plant.Item description

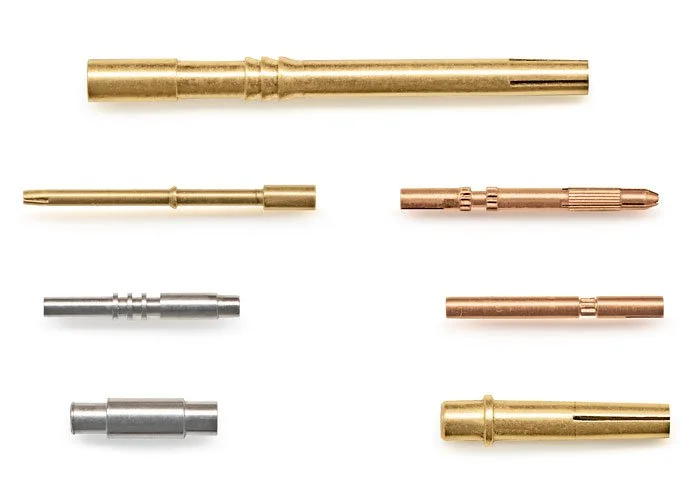

Typical Parts
Standard NC Functions
NC unit dedicated to CINCOM R series
Tool offset pairs: 16 pairs
7.2-inch monochrome liquid crystal display
Product counter display: Up to 8 digits
Operation time display
Preparation function
Interference check function
On-machine program check function
Main spindle speed change detection function
Automatic power-off function
Program storage capacity: Equivalent 20 m tape
Thread cutting canned cycle
Spindle synchronization control function
Sub-inch command
Optional NC Functions
Main spindle 1 degree indexing function
Back spindle 1 degree indexing function
Multiple repetitive cycle
Canned cycle for drilling
Nose R compensation function
Corner chamfering/rounding function
Program storage capacity: Equivalent 120 m tape (maximum)
Main spindle rigid tapping function
Tool spindle rigid tapping function
Back spindle rigid tapping function
Continuous threading cycle
Tool life control I
Standard Accessories
Main spindle chucking device
Workpiece separator
Carry type synchronous rotary guide bushing device
Coolant device (with level sensor)
Door switch/door lock
Back spindle chucking device
Lubrication device (with level sensor)
Optional Accessories
Stationary guide bushing device with open/close device
Rotary tool spindle drive unit for gang tool
Small 4-division separator
Cut-off tool breakage detector
Coolant flow-rate detecting device
Signal lamp
Work light
LFV Technology
We provide next-generation machining tools to greatly reduce or eliminate a host of chip-related problems during cutting, taking your productivity to the next level.
LFV technology stands for low frequency vibration cutting. The servo axes are vibrated in the axial direction using a unique control technology where by cutting is performed while synchronizing
this vibration with the rotation of the spindle. This cutting method introduces regular "air-cutting" into the cycle, breaking up of chips into very small pieces making it the optimum processing method
for difficult-to-machine materials.
Machine Specifications
R04:
Maximum machining diameter (D): Ø4mm
Maximum machining length (L): Fixed guide bushing: 40mm
Maximum machining length (L): Rotary guide bushing
Maximum front drilling diameter
Maximum front tapping diameter (tap)
Spindle through-hole diameter
Main spindle speed: Fixed guide bushing
Main spindle speed:Rotary guide bushing
For the gang rotary tool: Maximum drilling diameter
For the gang rotary tool:Maximum tapping diameter
For the gang rotary tool:Spindle speed
Max. chuck diameter of back spindle
Max. protrusion length in back machining process
Max. drilling diameter in back machining process
Max. tapping diameter in back machining process
Back spindle speed
Number of tools to be mounted
Turning tools on the gang tool post
Cross rotary tools on the gang tool post
Tools for front drilling
Tools for back drilling
Tool size: Tool (gang tool post)
Tool size: Sleeve
Motors: Spindle drive
Motors: Back spindle drive
Motors: Tool spindle on the gang tool post
Motors: Coolant oil
Motors: Lubricating oil
Center height
Rated power consumption
Weight
Ø4mm
40mm
—
Ø3mm
M3
Ø9mm
20,000 rpm (rating: 16,000 rpm)
—
Ø2mm
M2
8,000 rpm (part: 6,000 rpm)
Ø4mm
40mm
Ø2mm
M2.6
10,000 rpm
13
5
2
3
3
Ø8mm
Ø15.875mm
0.75 / 1.1 kW
0.5 kW
0.2 kW
0.18 kW
0.00 3kW
1,000mm
4kVA
950kg
R07:
Ø7mm
40mm
40mm
Ø4mm
M4
Ø12mm
16,000 rpm
12,000 rpm
Ø2mm
M2
8,000 rpm (part: 6,000 rpm)
Ø4mm
40mm
Ø2mm
M2.6
10,000 rpm
13
5
2
3
3
Ø8mm
Ø15.875mm
0.75 / 1.1 kW
0.5 kW
0.2 kW
0.18 kW
0.00 3kW
1,000mm
4kVA
950kg
Maximum machining diameter (D)
Maximum machining length (L): Fixed guide bushing
Maximum machining length (L): Rotary guide bushing
Maximum front drilling diameter
Maximum front tapping diameter (tap)
Spindle through-hole diameter
Main spindle speed: Fixed guide bushing
Main spindle speed:Rotary guide bushing
For the gang rotary tool: Maximum drilling diameter
For the gang rotary tool:Maximum tapping diameter
For the gang rotary tool:Spindle speed
Max. chuck diameter of back spindle
Max. protrusion length in back machining process
Max. drilling diameter in back machining process
Max. tapping diameter in back machining process
Back spindle speed
Number of tools to be mounted
Turning tools on the gang tool post
Cross rotary tools on the gang tool post
Tools for front drilling
Tools for back drilling
Tool size: Tool (gang tool post)
Tool size: Sleeve
Motors: Spindle drive
Motors: Back spindle drive
Motors: Tool spindle on the gang tool post
Motors: Coolant oil
Motors: Lubricating oil
Center height
Rated power consumption
Weight
